    What’s the purpose of this filter, if all you’re getting out is DC? I mean wouldn’t you want to set the cutoff frequency high enough to actually get a signal through? If all you’re looking for is the DC component, then wouldn’t you be better off (as in a more simple, thus cheaper, solution) just doing a rolling average filter?

    Again, I really didn’t follow along in signal processing that well, so I may just be exposing my ignorance here.

  • jaydev@lemmy.worldEnglish
    4·
    19 hours ago

    I feel like I should know this meme, but don’t. I have 3 main questions:

    1. Why does the multiplication of the 2 signals result in an extra fluctuation in the product?
    2. Why would the low pass filter produce a flat line? Is it because it’s letting such low frequencies pass that none of the frequencies in the product signal are not included?
    3. What does this have to do with locking in?
    • the_beber@feddit.orgOPEnglish
      4·
      14 hours ago

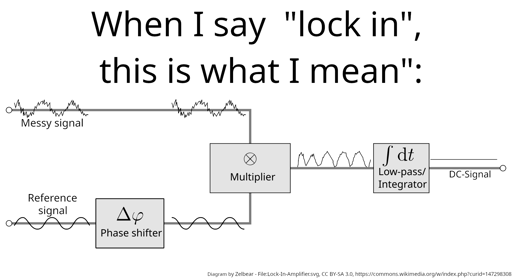

      The device, I‘m referencing here is called a lock-in amplifier. When you try to measure an extremly noisy signal without all the noise, you can use one of these. If you‘re dealing with a DC-signal, you can chop it at the reference frequency.

      Here‘s a great write up on the priciples of this technique: https://www.zhinst.com/sites/default/files/documents/2025-10/zi_whitepaper_principles_of_lock-in_detection.pdf

      But TLDR: After the reference signal is adjusted to have same frequency (and therefore constant phase difference), you get a signal that oscillates with ω_\text{in} - ω_\text{ref} and ω_\text{in} + ω_\text{ref}. Crucially, in the case, where ω_\text{in} = ω_\text{ref} the term becomes constant U(t) = U_0 |e^{i \theta}| while the other terms from other frequency components (Fourier-series) still oscillate. This is where the averaging comes in. An oscillating signal will average (roughly) 0 over a long enough duration. The output is then the amplitude of the desired signal without all the noise.
